Inside Unity Manufacture
Manufacturing
facilities
Explore the machining floor, inspection room and project-review spaces behind your custom parts.

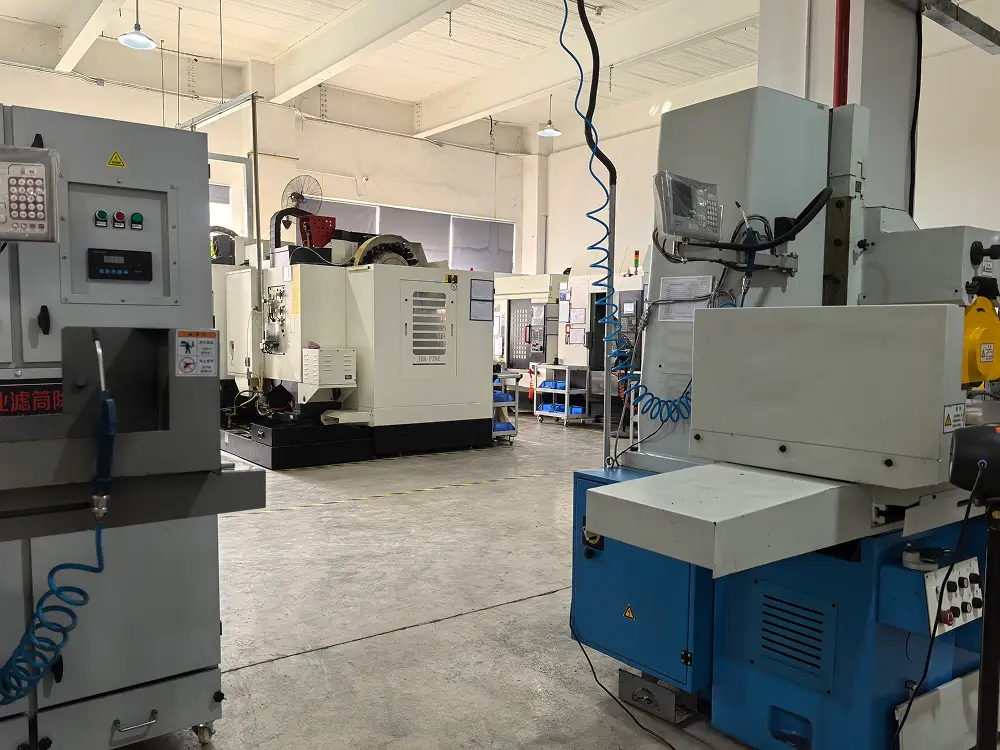

A closer look at the machining floor
See the equipment and working spaces used for custom CNC parts. From the shop-floor layout to the workholding inside a machine, these views show how machining is organized around the part.

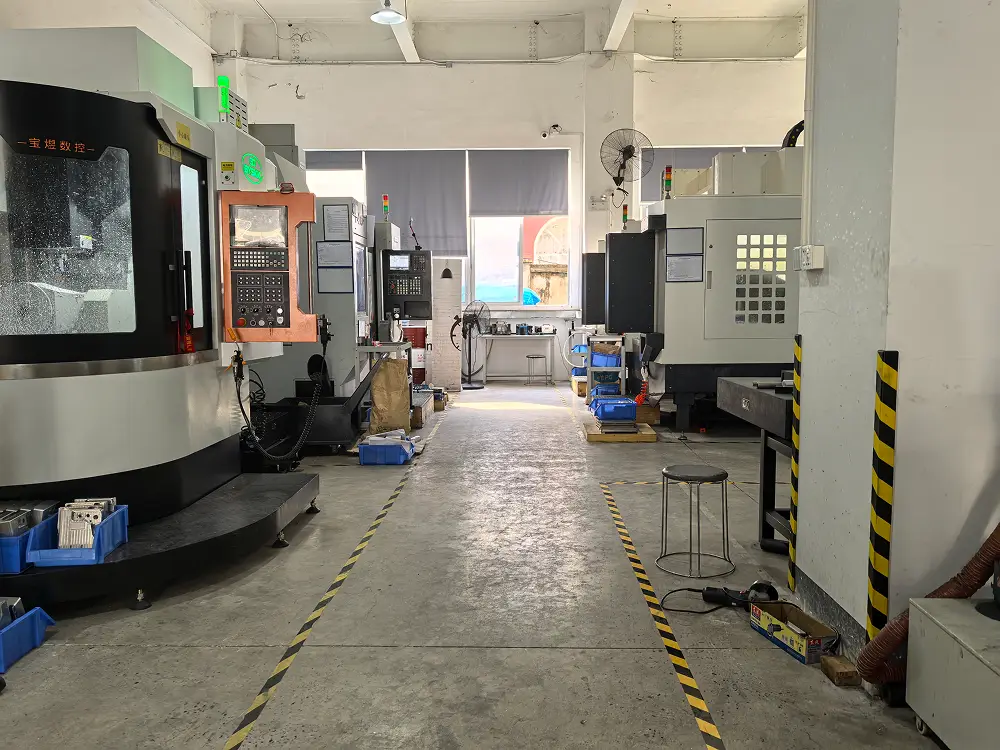

CNC machining workshop
Machining centers, tool storage and dedicated work areas bring the equipment needed for milling and related operations together on the production floor.

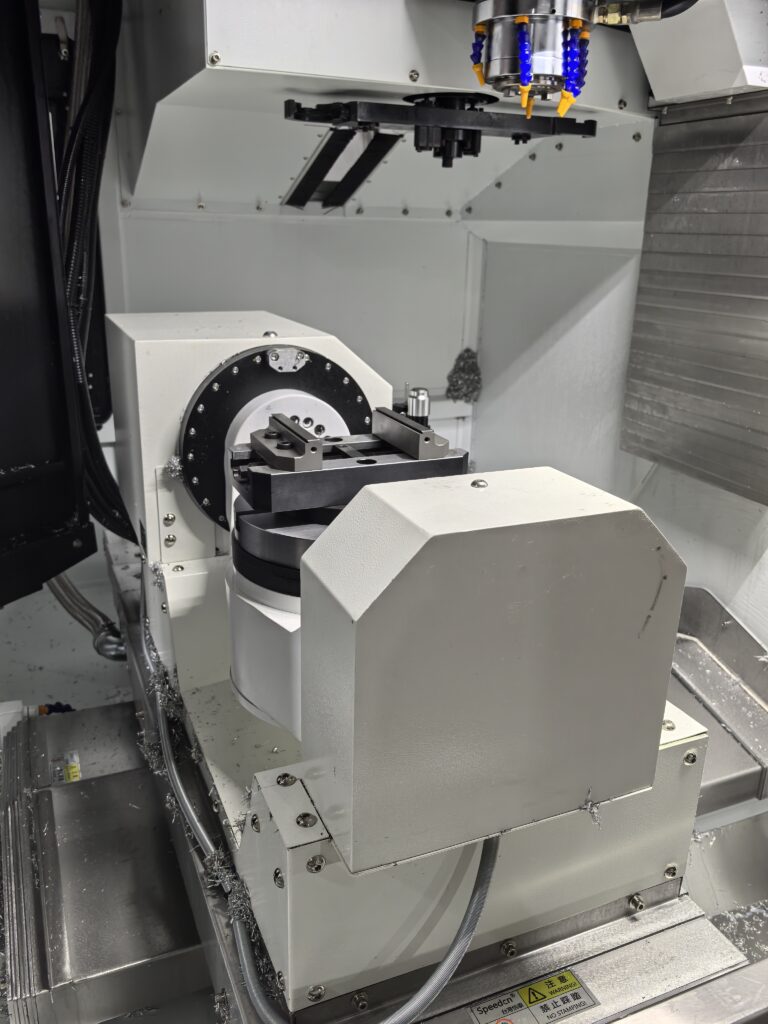

Workholding and part access
The fixture and spindle arrangement are part of every machining setup. Part geometry, access to features and the drawing requirements guide the setup selected for a project.

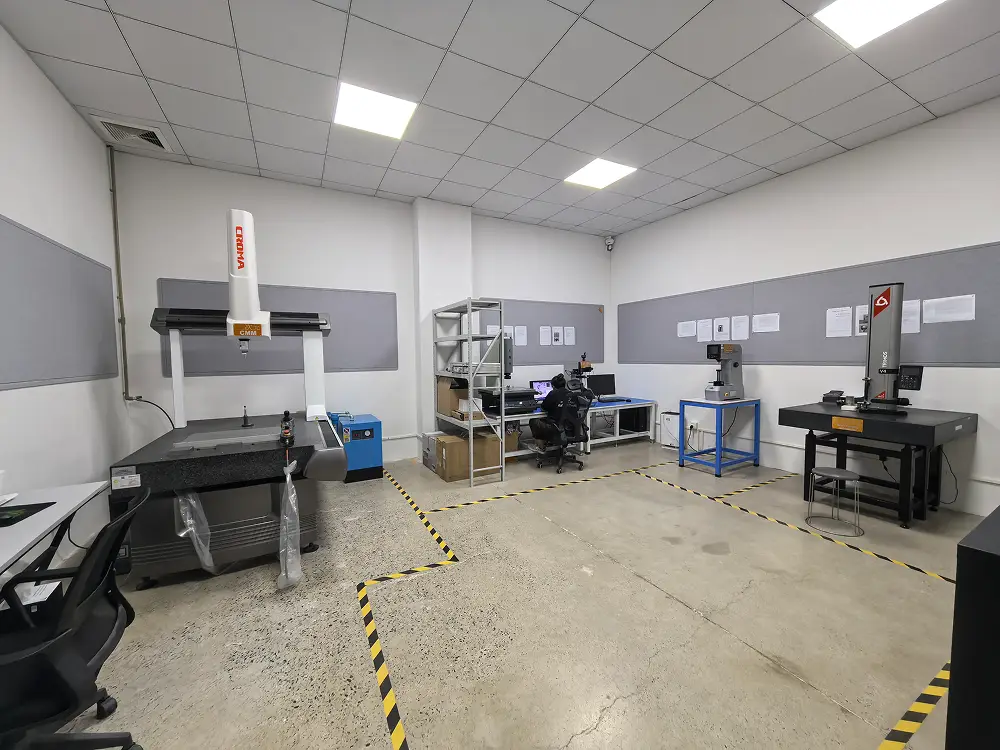

A dedicated space for dimensional inspection
The inspection room brings coordinate measurement and bench-top metrology together, away from the machining floor.
Inspection requirements start with your drawing: critical dimensions, datum references and the measurements needed to check the finished part. Tell us what needs to be documented when requesting a quote.

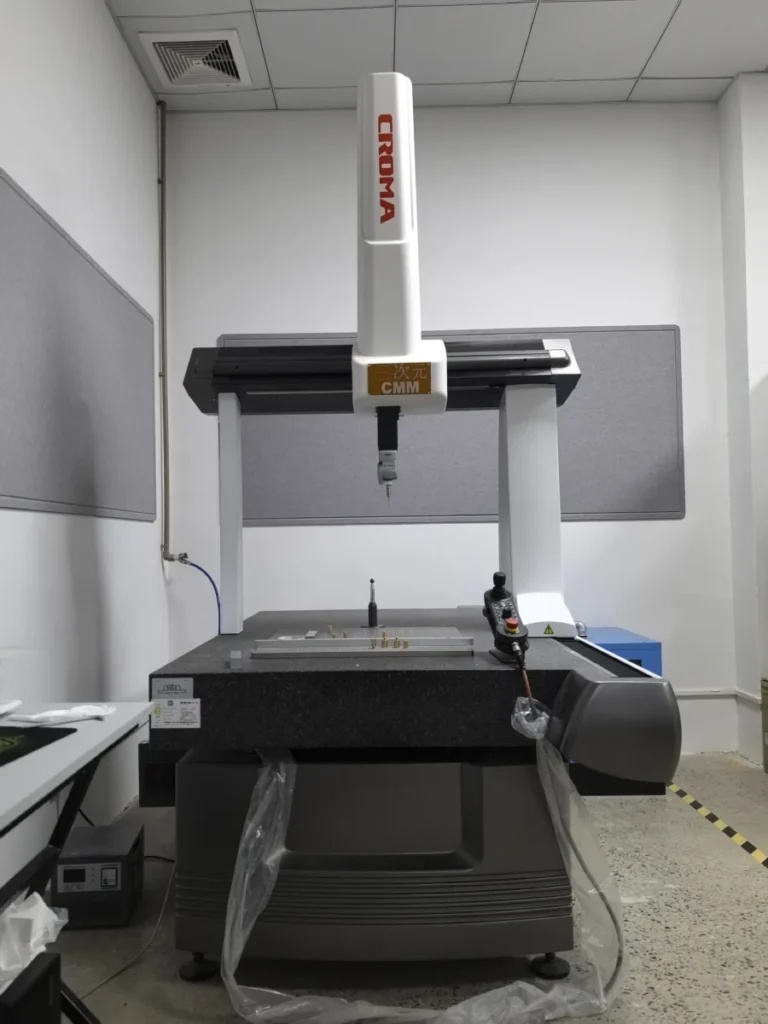

Coordinate measurement
A coordinate measuring machine supports dimensional and geometric checks. The features to measure and the inspection method should be agreed against the part drawing.

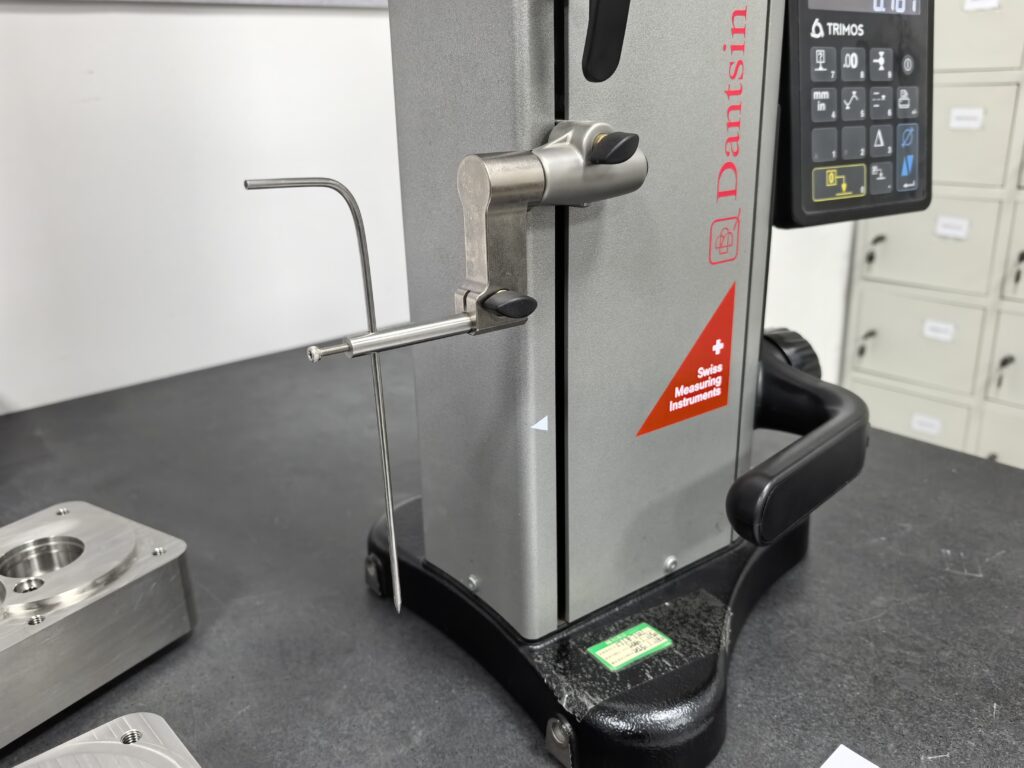

Bench-top metrology
Height measurement complements coordinate inspection for suitable features. Measuring equipment and the inspection approach are selected to suit the dimensions being checked.

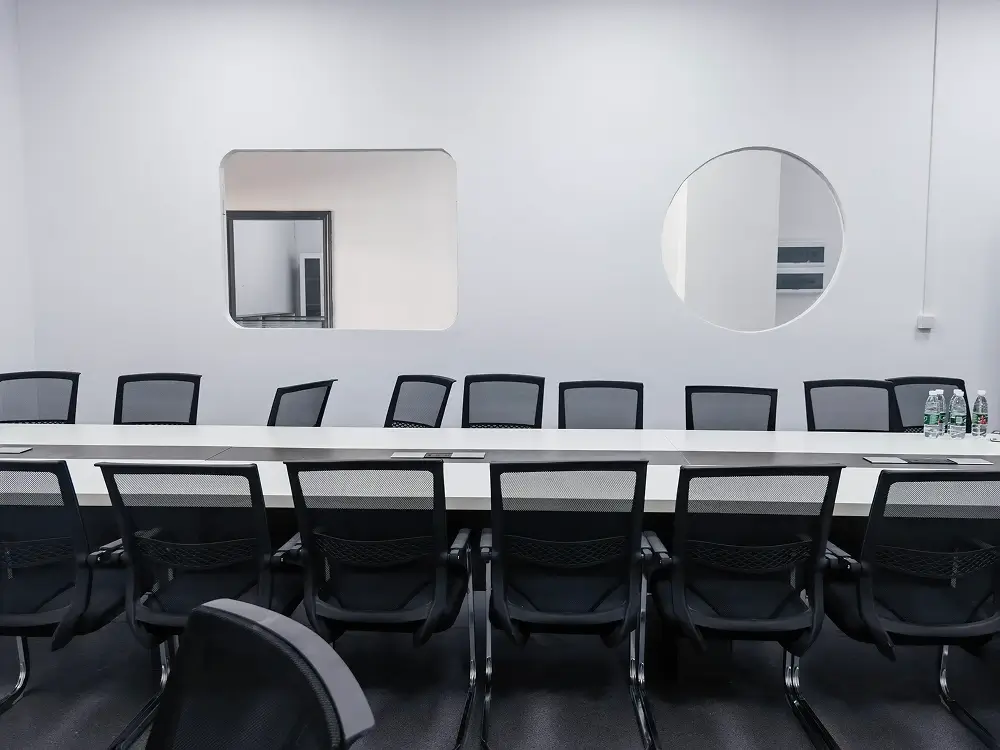

Room for the details that matter
The conference room provides a setting for project discussions alongside the production and inspection areas.
Use the conversation to align on material, part geometry, tolerances, surface finish and inspection expectations before production. For a facility walkthrough or an equipment-specific question, contact our team to discuss arrangements.
Planning a project or a facility review?
Can I arrange a facility walkthrough?
Contact our team to discuss a visit or remote walkthrough, the areas you would like to see and suitable arrangements. Please confirm availability before making travel plans.
How can I confirm equipment suitability for my part?
Share the part drawing or CAD file, material, overall dimensions, quantity and critical features. Ask us to confirm the proposed machining setup and any equipment-specific requirements for your project.
What inspection information should I include?
Identify critical dimensions, datums, tolerance requirements and any required inspection reports or material documentation. These requirements should be reviewed during quotation, before an order is confirmed.
Let’s review your next part
Send your drawings, material requirements and quantities. We’ll review the machining and inspection needs with you.
